The next-gen edge AI solution supports endless AI model training and auto-upgrades.
Customized products for clients are driving new value in traditional industries.
A one-stop provider of AI and hardware customization for businesses.
8-Core CPU｜32TOPs@INT4
16 Channel High-Definition Video
LTE/5G/WIFI/BT Options
Support 8K Video
-20~60’C Operating Temperature
Multiple Physical Interfaces
Supports 8TB HDD
No Code Monitor Rule Development
Cross Model Inference
8-Core TPU
Data Encryption

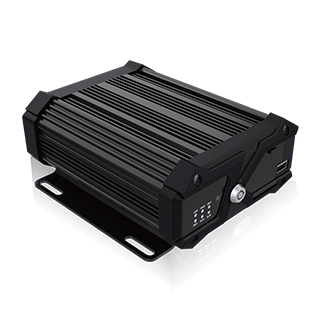

The E-Song Edge AI Box is an edge device that runs AI models locally. It supports various AI algorithms, including object recognition, behavior detection, speech recognition, track objects or people, face search, and OCR, which can be combined. It is compatible with common systems and allows flexible AI detection and alert rule settings through an easy-to-use interface.
Working with ESLP, it offers a no-code solution for creating and deploying custom AI applications. The device also collects field data and uploads it to ESLP for continuous AI model optimization and performance improvement.
Cross-Model
Inference
Supports AI algorithms such as object recognition, speech recognition, object/person tracking, text recognition, and action recognition, and can simultaneously perform computations with multiple algorithms.

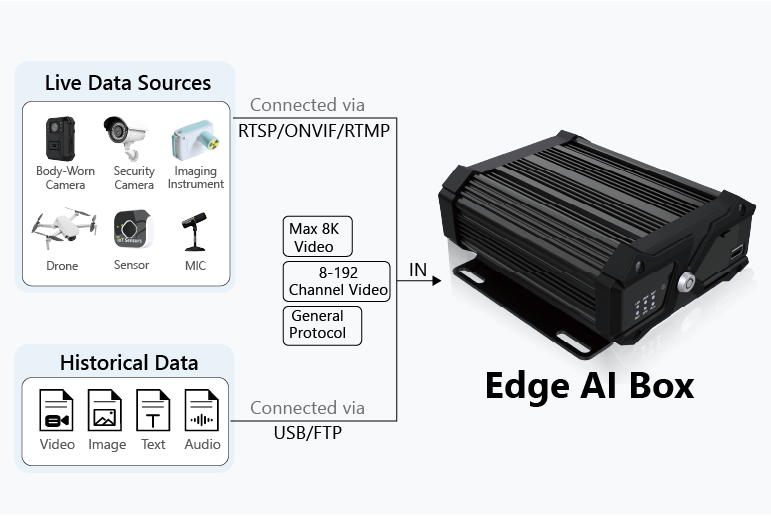

It analyzes live data in milliseconds (ms) from different types of cameras (CCTV, body cameras, drone cameras, etc.), audio/IoT devices via general protocols like RTSP, ONVIF, RTMP, Zigbee etc., as well as historical data via FTP or USB connection. It supports up to 8-192 channels live inference.
Supports simultaneous processing of 16 channels of HD video.

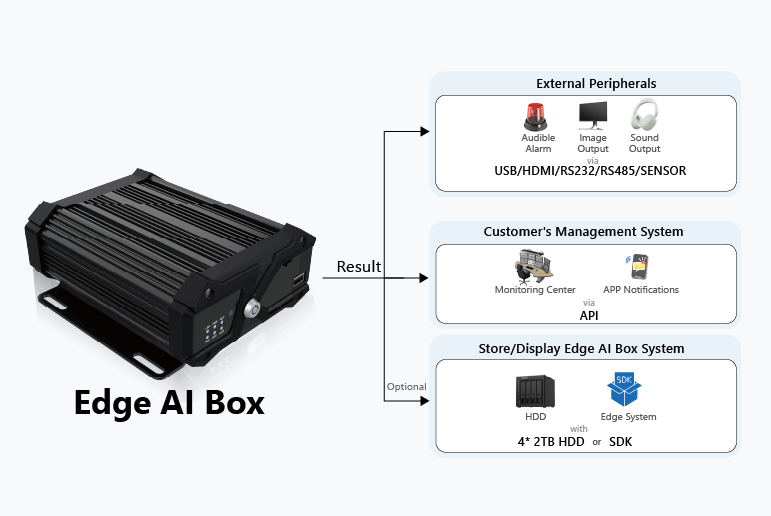

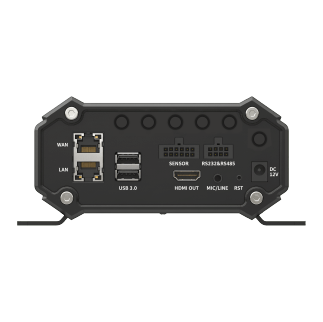

It has USB, HDMI, Ethernet, RS232, RS485 interfaces to external peripherals. It is also optional with 4G/LTE/5G/WIFI/BLE and 4×2TB HDD max. It also supports sending alerts to external peripherals like sirens, customer management/control systems via API. E-Song can also offer an SDK for customers to develop their own systems.

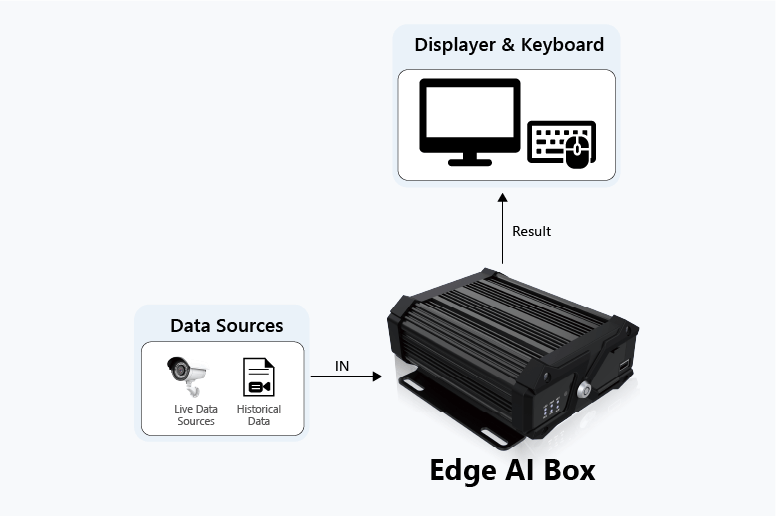

The E-Song Edge AI Box has an independent backend, allowing AI rule setup without coding. After connecting a keyboard, mouse, and display, it functions as an intelligent device, forming a complete AI application system with cameras and other data source devices.
With the AI features of the Edge AI Box, specified faces or license plates in real-time video streams can be automatically blurred before the video is pushed to the visual interface, ensuring that low-privilege users cannot see restricted content.
E-Song Digital has over 30 R&D engineers specializing in hardware, software, and AI technologies. We offer customized features and provide fast, meticulous service to our clients.
In which scenarios is the E-Song Edge AI Box suitable for use?
The Edge Box can be integrated into the amusement park's surveillance system to quickly locate specific individuals based on facial features or clothing characteristics,improving search efficiency and visitor management.
Rapid person search across multiple cameras.
Supports face and appearance-based matching.
Effcient retrieval from historical video.
Customizable search parameters for different scenarios.

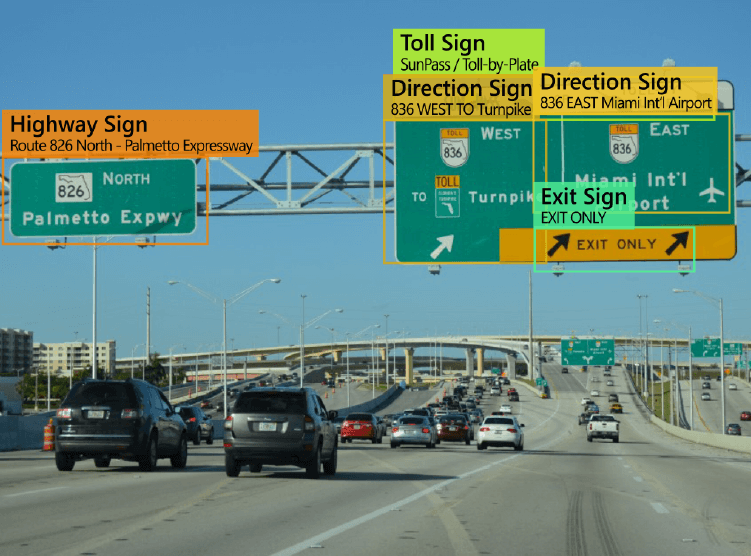

The Edge Box can be installed on vehicles to monitor surroundings in real time,Supporting functions such as object detection, pedestrian recognition, traffic sign recognition, license plate reading, and driving behavior analysis. It's ideal for patrol, logistics, and public transport monitoring.
Real-time recognition in moving environments.
Supports GPS integration for location-based tracking.
Edge processing ensures low latency without network dependency.

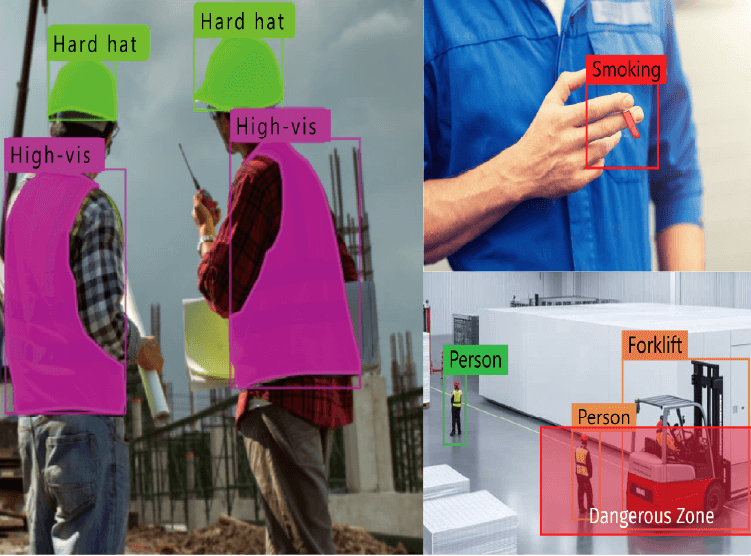

The Edge Box can be deployed at construction sites for temporary or mobile surveillance, recognizing unsafe behaviors such as workers not wearing helmets, entering restricted zones, fighting, smoking, or falling. It helps enhance site safety and reduce accidents.
Real-time detection and alarm for unsafe behaviors.
Recognizes both personnel actions and environmental anomalies.
Supports rapid deployment and relocation for temporary sites.
Works with external alarms or lights for immediate alerts.

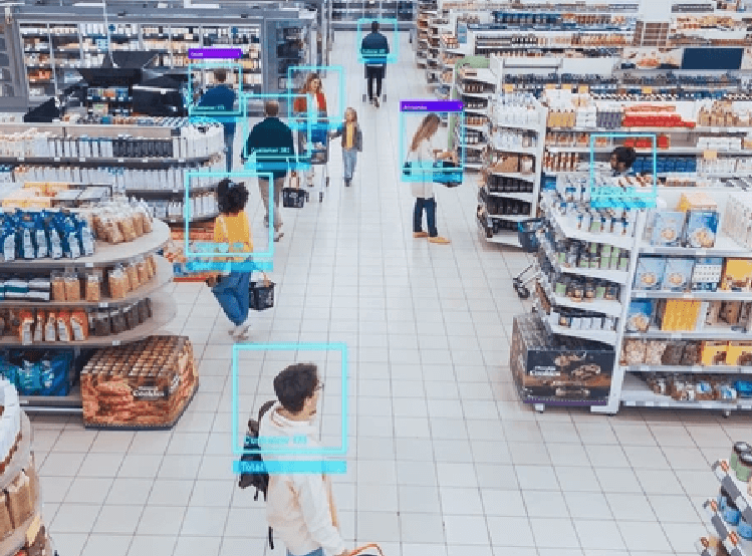

The Edge AI Box can be integrated into the retail store's surveillance system to detect theft, dropped goods, fights, falls, illegal warehouse entries, fire door openings, and more.
Automatic alarm after detection.
Quick search of behaviors in historical video.
Area-specific recognition.
Customizable recognition content.

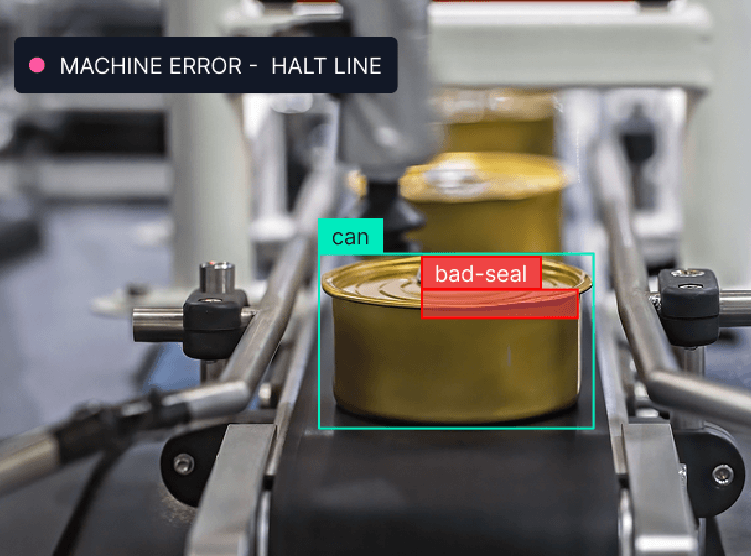

Real-time video streams (including special images like thermal and X-ray images) are recognized in milliseconds, enabling defect detection, size identification, and pattern recognition.
Millisecond-level recognition, can work with external devices for real-time actions.
No limitations on recognized objects; users can specify targets, including rare items or specific parts.
Recognition extends beyond objects to sounds, worker actions, and instrument readings.
| Model No. | EAB016 |
| Main CPU | 8 core A53@1.6GHz |
| TPU | 16TOPs@INT8 32TOPs@INT4 4 TFLOPs @FP16/BF16 0.5 TFLOPs@FP32 |
| Memory | 4GBLPDDR4x@4266Mbps 64Bit |
| EMMC | 32GB, maximum support up to 128GB |
| Video Decoding | 16 CH 1920*1080@30FPS |
| Video Encoding | 10 CH 1920*1080@30FPS |
| Image Decoding | 16 CH 1920*1080@30FPS |
| Maximum Resolution | 8192*8192 |
| Interface | ETH 10/100/1000Mbps adaptve *2, USB3.0*2/HDMI2.0/Audio(in|out)/CAN/RS-232/RS-485/TF/GPIO/SATA3.0 |
| Optional Interfaces | LTE/4G/5G/Wi-Fi/BT |
| Protection Rating | Passive cooling |
| Power Consumption | 15W |
| Working Temperature | -20℃~+60℃ |
| Size | 182*143*71 mm |
| Storage Temperature | -40°C~+85°C |
| Protection Rating | IP41 |
